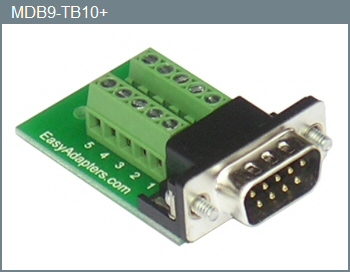

Male DB-9 10-Position Adapter
Price at Qty 1:
$8.81
Buy at Winford
|
 Yes -
It's In Stock
|
| |
|
Product Description:
|
| |
| The MDB9-TB10+ is a male DB-9 to 10-position terminal block adapter. It provides connection points for all of the
DB-9's pins and the shield ground. The MDB9-TB10+ can be used for practically any application requiring a male DB-9 connector.
Please note that a female adapter is required to plug directly into most controllers. |
| |
|
Specifications & Features:
|
| |
- Male DB-9 connector
- 10-Position terminal block accepts 16-24 AWG solid or stranded
wire
- RoHS compliant
- Cable strain relief
- Connection points are labeled with pin numbers
- Can be used for practically any application requiring a male
DB-9 connector
- Supports non-standard AMX & Crestron control ports
- No soldering or crimping required
- Cost effective and reliable cable termination
- Machine screws secure adapter to device
- Dimensions - Height .62in (15.7mm), Width 1.22in (31.0mm),
Depth 1.94in (49.3mm)
|
| |
|
Standard Pin Assignment:
|
| |
| Pin |
- |
Name |
| 1 |
- |
Data Carrier Detect
(DCD) |
| 2 |
- |
Receive Data (RXD) |
| 3 |
- |
Transmit Data (TXD) |
| 4 |
- |
Data Terminal Ready
(DTR) |
| 5 |
- |
Signal Ground (GND) |
| 6 |
- |
Data Set Ready (DSR) |
| 7 |
- |
Request To Send (RTS) |
| 8 |
- |
Clear To Send (CTS) |
| 9 |
- |
Ring Indicator (RI) |
| 10 |
- |
Shield Ground (Shell) |
| |
|
|
|
| |
|
Non-Standard Pin Assignment:
|
| |
| Pin |
- |
Name |
RS-232 |
RS-422 |
RS-485 |
| 1 |
- |
Receive Data (RX-) |
|
X |
X |
| 2 |
- |
Receive Data (RXD) |
X |
|
|
| 3 |
- |
Transmit Data (TXD) |
X |
|
|
| 4 |
- |
Transmit Data (TX+) |
|
X |
X |
| 5 |
- |
Signal Ground (GND) |
X |
X |
|
| 6 |
- |
Receive Data (RX+) |
|
X |
X |
| 7 |
- |
Request To Send (RTS) |
X |
|
|
| 8 |
- |
Clear To Send (CTS) |
X |
|
|
| 9 |
- |
Transmit Data (TX-) |
|
X |
X |
| 10 |
- |
Shield Ground (Shell) |
|
|
|
| |
|
|
|
|
|
|
| |
|
Quantity Pricing (USD):
|
| |
| 1-3 |
4-19 |
20-49 |
50+ |
$8.81
|
$8.38
|
$7.98
|
$7.60
|
|
Buy at Winford |
|
|
|
|
| |
|
|
|
|
|
