Male DB-9 5-Position Adapter
Price at Qty 1:
$6.59
Buy at Winford
|
 Yes -
It's In Stock
|
| |
|
Product Description:
|
| |

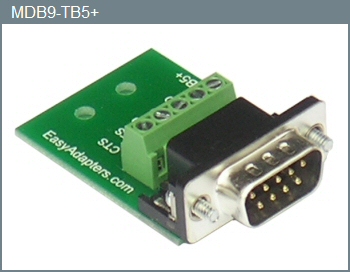

| The MDB9-TB5+ is a male DB-9 to 5-position terminal block adapter. It was specifically designed for non-standard
control ports like those found on AMX & Crestron control systems. The MDB9-TB5+ provides separate connection points for the five signals
(RXD - Pin 2, TXD - Pin 3, GND - Pin 5, RTS - Pin 7, and CTS - Pin 8) that these control systems use for RS-232 control. Please note that
a female adapter is required to plug directly into most controllers. |
| |
|
Specifications & Features:
|
| |
- Male DB-9 connector
- 5-Position terminal block accepts 16-24 AWG solid or stranded
wire
- RoHS compliant
- Cable strain relief
- Connection points are labeled with signal abbreviations and
pin numbers
- Supports 3-wire and 5-wire RS-232 cable configurations
- Supports non-standard AMX & Crestron control ports
- No soldering or crimping required
- Cost effective and reliable cable termination
- Machine screws secure adapter to device
- Dimensions - Height .62in (15.7mm), Width 1.22in (31.0mm),
Depth 1.94in (49.3mm)
|
| |
|
Standard Pin Assignment:
|
| |
|
Pin
|
- |
Name
|
| 2 |
- |
Receive Data (RXD) |
| 3 |
- |
Transmit Data (TXD) |
| 5 |
- |
Signal Ground (GND) |
| 7 |
- |
Request To Send (RTS) |
| 8 |
- |
Clear To Send (CTS) |
| |
|
|
|
| |
|
Quantity Pricing (USD):
|
| |
| 1-3 |
4-19 |
20-49 |
50+ |
$6.59
|
$6.29
|
$5.99
|
$5.70
|
|
Buy at Winford |
|
|
|
|
| |
|
|
|
|
|
