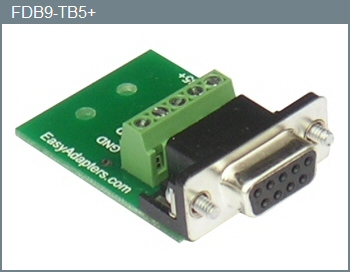

Female DB-9 5-Position Adapter
Price at Qty 1:
$6.59
Buy at Winford
|
 Yes -
It's In Stock
|
| |
|
Product Description:
|
| |
| The FDB9-TB5+ is a female DB-9 to 5-position terminal block
adapter. It was specifically designed for non-standard control ports like those
found on AMX & Crestron control systems. The FDB9-TB5+ provides separate
connection points for the five signals (RXD - Pin 2, TXD - Pin 3, GND - Pin 5, RTS
- Pin 7, and CTS - Pin 8) that these control systems use for RS-232 control. |
| |
|
Specifications & Features:
|
| |
- Female DB-9 connector
- 5-Position terminal block accepts 16-24 AWG solid or stranded wire
- RoHS compliant
- Cable strain relief
- Connection points are labeled with signal abbreviations and pin
numbers
- Supports 3-wire and 5-wire RS-232 cable configurations
- Supports non-standard AMX & Crestron control ports
- No soldering or crimping required
- Cost effective and reliable cable termination
- Machine screws secure adapter to device
- Dimensions - Height .62in (15.7mm), Width 1.22in (31.0mm), Depth 1.94in
(49.3mm)
|
| |
|
Standard Pin Assignment:
|
| |
|
Pin
|
- |
Name
|
| 2 |
- |
Receive Data (RXD) |
| 3 |
- |
Transmit Data (TXD) |
| 5 |
- |
Signal Ground (GND) |
| 7 |
- |
Request To Send (RTS) |
| 8 |
- |
Clear To Send (CTS) |
| |
|
|
|
| |
|
Quantity Pricing (USD):
|
| |
| 1-3 |
4-19 |
20-49 |
50+ |
$6.59
|
$6.29
|
$5.99
|
$5.70
|
|
Buy at Winford |
|
|
|
|
| |
|
|
|
|
|
New! Winford Engineering is pleased to announce that we have now acquired the Easy Adapters brand and the most common Easy Adapters products. Winford is now producing, selling, and shipping these products. Please see product information below, including links to purchase from Winford's web site.
