Stereo Jack 3-Position Adapter
Stereo Jack 3-Position Adapter

Price at Qty 1: $4.45

Buy at Winford

Yes - It's In Stock

 Product Description:

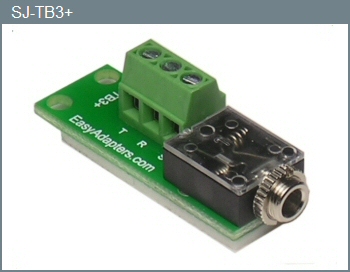

The SJ-TB3+ is a 3.5mm stereo jack to 3-position terminal block adapter. It allows easy termination of IR receivers, IR emitters, and computer audio in distributed systems.

 Specifications & Features:

  • 3.5mm stereo jack connector
  • 3-Position terminal block accepts 16-24 AWG solid or stranded wire
  • RoHS compliant
  • Cable strain relief
  • Connection points are labeled T (Tip), R (Ring), and S (Sleeve)
  • No soldering or crimping required
  • Cost effective and reliable cable termination
  • Includes double-sided adhesive tape
  • Panel mountable
  • Dimensions - Height .53in (13.5mm), Width .53in (13.5mm), Depth 1.63in (41.4mm)

 Standard Pin Assignment:

Application - Tip Ring Sleeve
IR Receiver - IR Signal Ground +Voltage
IR Emitter - + No Connection -
Stereo Audio - Left Channel Right Channel Ground


 Quantity Pricing (USD):

1-3 4-19 20-49 50+
$4.45
$4.25
$4.05
$3.85
